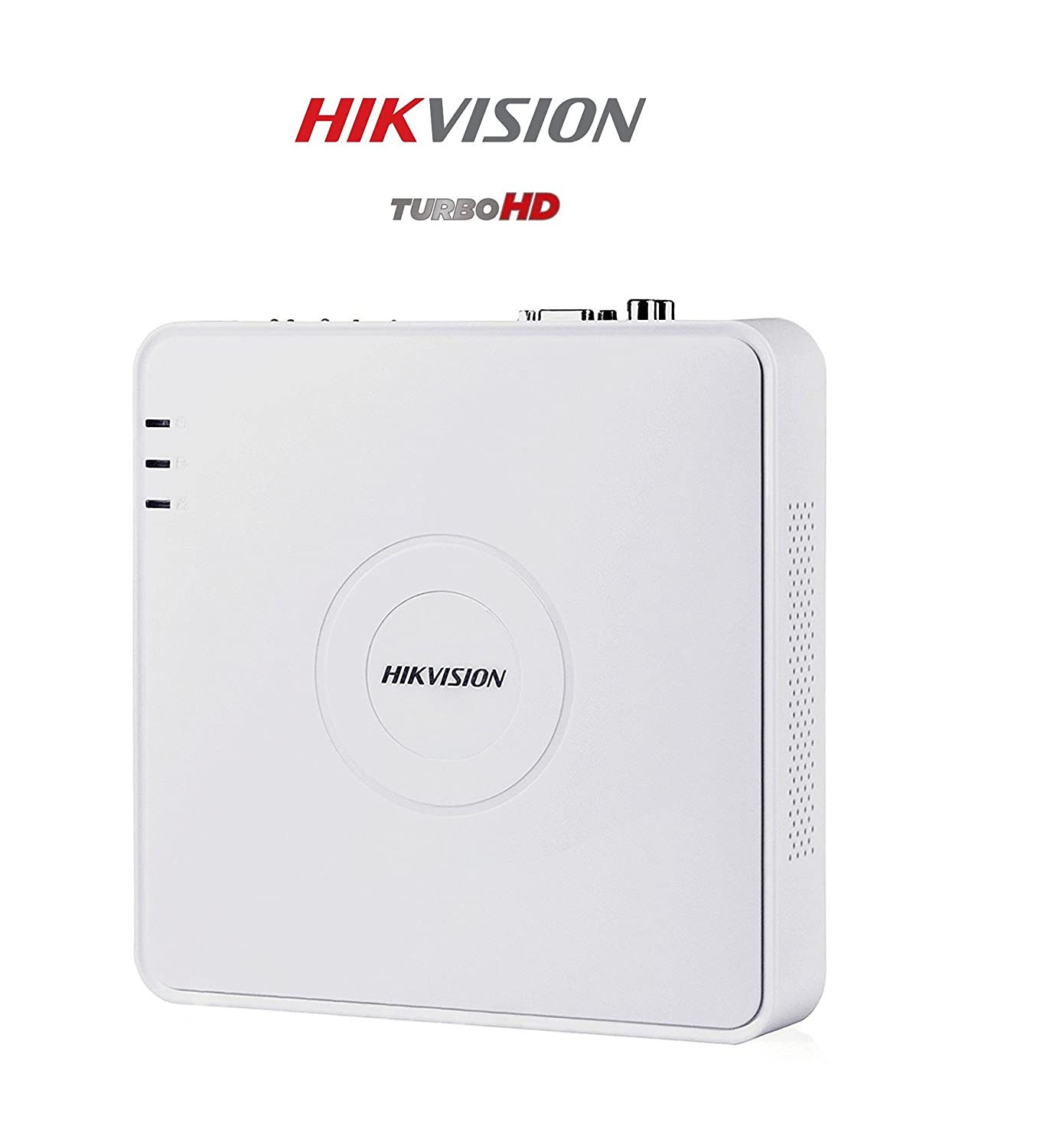

Hikvision HD 2MP DVR 4Ch Mini Turbo DS-7A04HQHI-K1

Hikvision HD 2MP DVR 4Ch Mini Turbo DS-7A04HQHI-K1

Brand        HIKVISION

Model        DS-7A04HQHI-K1

Model Name        HD Series

Item Weight        9.72 Kg

Product Dimensions        20 x 20 x 4.5 cm

Item model number        DS-7A04HQHI-K1

Resolution        1080p

Additional Features        HIKVISION 4CH 2MP Turbo HD DVR with 4 Bullet Camera Combo Kit, RJ45, 2 USB PORT, Mouse, 4TB HDD Supported , Free Cloud P2P In-Built, Mobile View (Android And Windows Phone), Can Be Watched Online Using Cloud P2P, High Quality Branded Product, Installation is not included.

Included Components        4 Channel Mini Turbo DVR Kit

Number Of Items        1

Video Capture Resolution        1080p

Batteries Included        No

Batteries Required        No

Connector Type        Wired

  • Video/Audio input

    • Video compressionH.265+/H.265/H.264+/H.264
    • Analog and HD-TVI video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    • HDTVI input3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1.
    • AHD input1080p25, 1080p30, 720p25, 720p30
    • HDCVI input1080p25, 1080p30, 720p25, 720p30
    • CVBS inputSupport
    • IP video input1-ch Up to 4 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras
    • Audio compressionG.711u
    • Audio input/Twoway audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Video/Audio output

    • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • Encoding resolutionWhen 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
    • Frame rateMain stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
    • Video bit rate32 Kbps to 6 Mbps
    • Audio output1-ch, RCA (Linear, 1 KΩ)
    • Audio bit rate64 Kbps
    • Dual streamSupport
    • Stream typeVideo, Video & Audio
    • Synchronous playback4-ch
  • Network management

    • Remote connections128
    • Network protocolsTCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, ONVIF ONVIF iSCSI, UpnP™, HTTPS
  • Hard disk

    • SATA1 SATA interface
    • CapacityUp to 4 TB capacity for each disk
  • External interface

    • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
    • USB interfaceReal panel: 2 × USB 2.0
  • General

    • Power supply12 VDC
    • Consumption (without HDD)≤ 8 W
    • Working temperature-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
    • Working humidity10% to 90%
    • Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
    • Weight (without HDD)≤ 1 kg (2.2 lb)
